Dimensions & Mounting
The MFR modules are designed for mounting on standard DIN rails (DIN-Rail TS35). The electrical connection is made via pluggable spring-cage terminals, which allows for quick module replacement without loosening individual wires.
- Terminals: Pluggable spring-cage technology
- Conductor Cross-section: max.
Form Factor Overview
Depending on the model series, different housing formats are used.
Standard Form Factor (Series 01)
A compact, wide housing where connections are distributed at the top and bottom.
| Dimension | Value |
|---|---|
| Width | 77 mm |
| Length | 90 mm |
| Height | 40 mm |
| Module | Dimensions |
|---|---|

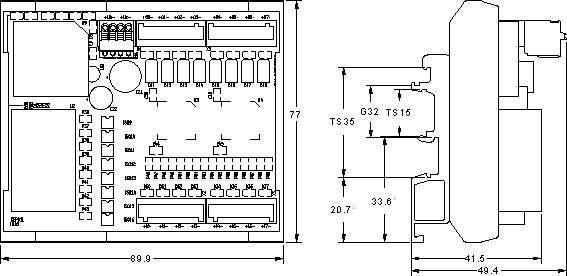

| XEP01L |  |

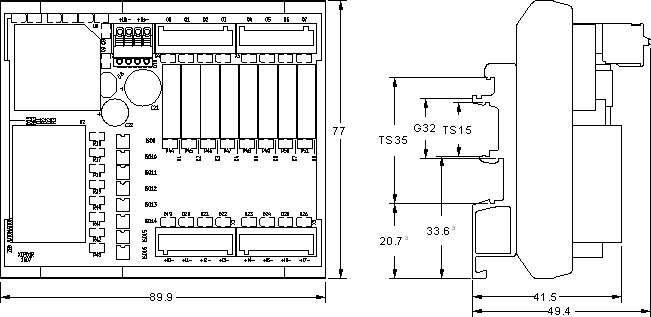

| XEP01R |  |

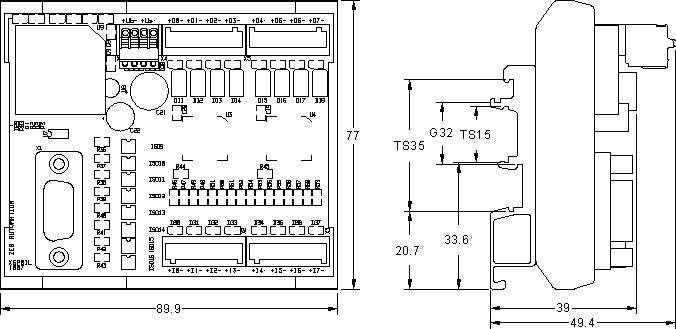

| XSP01L |  |

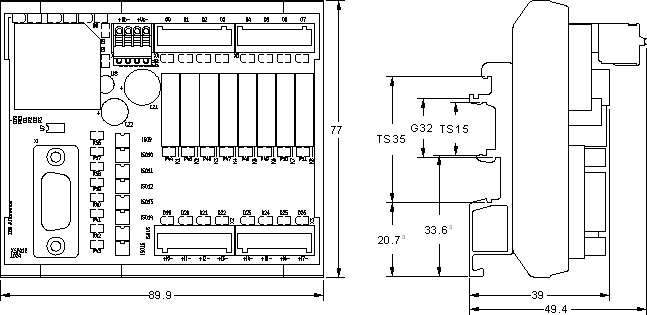

| XSP01R |  |

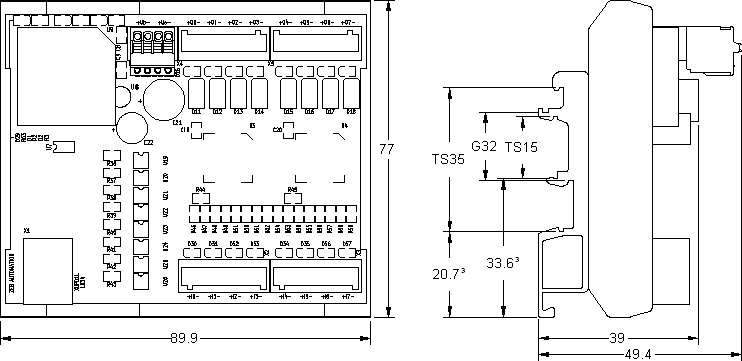

| XUP01L |  |
| XUP01R |  |
Narrow Form Factor (Series 11)
A very narrow but deeper housing for high packing density in the control cabinet.
| Dimension | Value |
|---|---|
| Width | 22.5 mm |
| Depth | 120 mm |
| Height | 100 mm |
| Module | Dimensions |
|---|---|

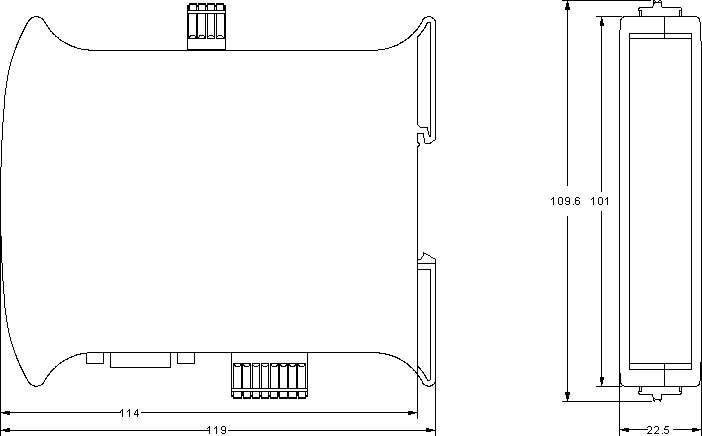

| XSP11L |  |
| XSP11R | |
Mounting Note
When mounting, especially with the narrow form factor and densely packed cabinets, ensure sufficient ventilation if high load currents are switched via the outputs.
